Name: Kolomboormachine OPTIMUM B 30 VGM
Brand: Optimum
SKU: MET-18---23
Availability: Discontinued

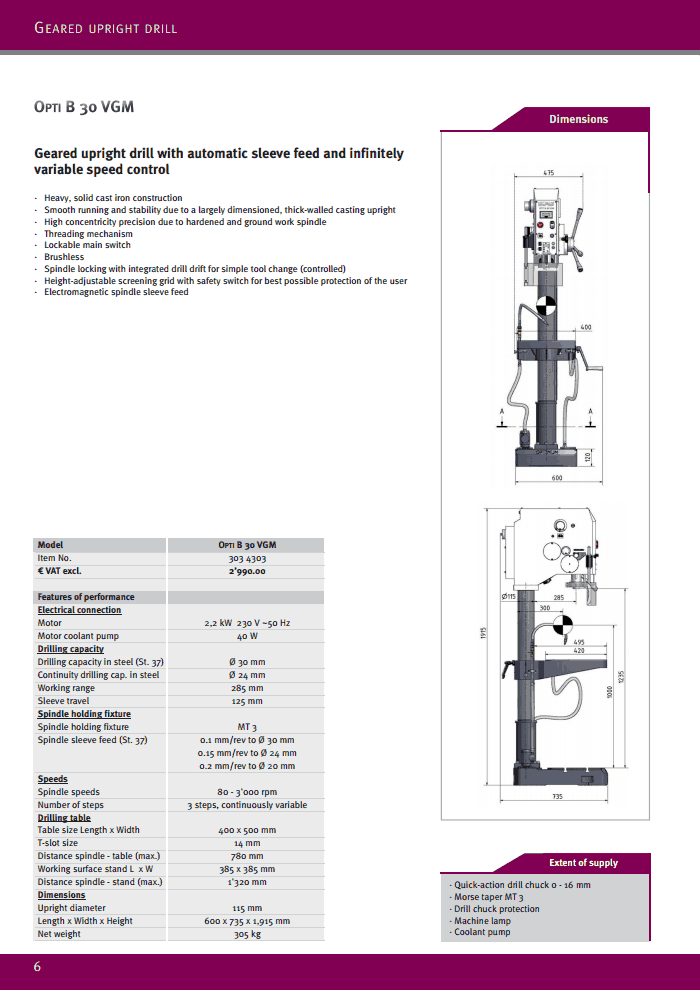

Kolomboormachine OPTIMUM B 30 VGM

Gesloten veiling

Online veiling : Kolomboormachine OPTIMUM B 30 VGM, 2,5 kW

Heavy, solid cast iron construction
Smooth running and stability due to a largely dimensioned, thick-walled casting upright
High concentricity precision due to hardened and ground work spindle
Threading mechanism
Lockable main switch
Brushless
Spindle locking with integrated drill drift for simple tool change (controlled)
Height-adjustable screening grid with safety switch for best possible protection of the user
Electromagnetic spindle sleeve feed

Technical data
Motor	2.5 kW 230 V ~50 Hz
Motor coolant pump	40 W
Drilling capacity in steel (S235JR)	Ø 30 mm
Continuity drilling cap. in steel (S235JR)	Ø 24 mm
Working range	285 mm
Sleeve travel	125 mm
Spindle holding fixture	MK 3
Spindle sleeve feed (S235JR)	0.1 mm/rev to Ø 30 mm


Spindle speeds	80 - 3'000 rpm
Number of steps	3 steps, continuously variable
Table size Length x Width	400 x 500 mm
T-slot size	14 mm
Distance spindle - table (max.)	780 mm
Working surface stand L x W	385 x 385 mm
Distance spindle - stand (max.)	1'320 mm
Upright diameter	115 mm
Dimensions (LxWxH)	600 x 735 x 1'915 mm
Net weight	305 kg
